To work with an HTTP packet, locate and open the packet-level recording in Central > HTTP Message Recordings.

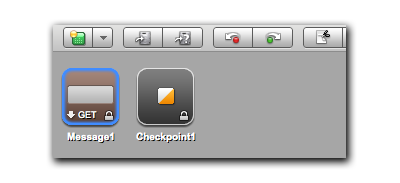

When the Show/Hide Packets icon is visible it functions as a toggle. Click it to turn packet display on or off.

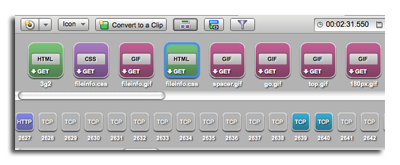

When packets are shown, the relationship between the highlighted message and the corresponding packets is shown. The packets that correspond are highlighted in blue. Similarly, if you click any given packet, the corresponding message will be highlighted. Some packets do not correspond to any message and thus will not cause a message to be highlighted. To view detailed information about a packet, click the icon for the packet. Detailed information about that packet will appear in the lower right hand portion of the recording screen.
The detailed information displayed for a packet can be summarized as follows: Ethernet detail Internet Protocol (IP) detail Transmission Control Protocol (TCP) detail Packet content Each packet consists of a set of headers for the various communication layers involved in the proper delivery of messages. Typically, the communication layers for HTTP consist of a network layer (Ethernet) and the TCP/IP layers. Within the protocol layers is the actual content of the packet, sometimes referred to as the payload.
The information from the Ethernet portion of the packet is summarized in the following table. dst The network destination address src The network source address proto The encapsulated protocol (ie the next layer). In this case, Internet Protocol (IP) crc Checksum. In this case the checksum was not provided.

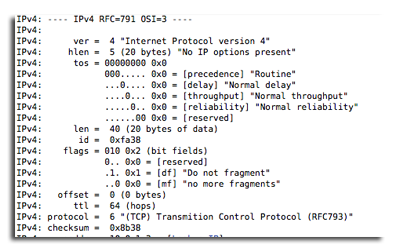

The information from the Internet Protocol layer is displayed as in the following example:
The information from the Internet Protocol (IP) portion of the packet is summarized in the following table. ver The version of Internet Protocol (IP) used. In this case, version 4 hlen The length of the IP header in 4 byte increments tos Flags used in IP routing len Total length of the IP packet. Note that the packet includes the entire TCP packet including its headers. id IP packet id. Aids in reassembling fragmented packets flags Flags that control packet fragmentation. These flags control whether or not the IP packet is allowed to be delivered in more than one fragment, and whether or not this is the last fragment (if allowed). offset If fragmented, the offset for the fragment ttl Time-to-live for the packet (in seconds) protocol Protocol of the encapsulated layer. In the example the encapsulated communication layer is Transmission Control Protocol (TCP) checksum Checksum for packet validation saddr Source IP address (host name lookup provided) daddr Destination IP address (host name lookup provided)
The information from the Transmission Protocol layer is displayed as in the following example:
The information from the Transmission Control Protocol (TCP) portion of the packet is summarized in the following table. sport Sending port number dport Destination port number seq Sequence number of the packet ack Sequence number of the packet to be acknowledged hlen Header length in 4 byte increments res Reserved code Control flags     URG:  Urgent Pointer field significant       ACK:  Acknowledgment field significant       PSH:  Push Function       RST:  Reset the connection       SYN:  Synchronize sequence numbers       FIN:  No more data from sender win The number of data octets beginning with the one indicated in the acknowledgment field which the sender of this segment is willing to accept. crc Checksum for packet validation urg This field communicates the current value of the urgent pointer as a positive offset from the sequence number in this segment.  The urgent pointer points to the sequence number of the octet following the urgent data.  This field is only be interpreted in segments with the URG control bit set.

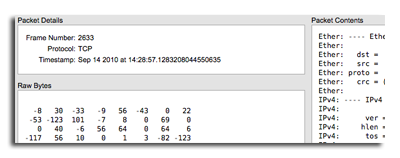

The Raw Bytes section is the actual data portion of the given packet. This is the raw data of the HTTP message. This display contains the HEX values for the contents.
