Sorting Widget Data

by Community Manager on 07-06-2011 12:47 PM - last edited on 05-07-2012 05:48 AM

Changing Sort Order in Selected Analysis Widgets

For Analysis widgets in the Basic widget category, information can be sorted within a given container either alphabetically or by the Order in containing object (e.g. the order of occurrence in the given parent container).

  1. Click Toggle Dashboard Edit Mode on the dashboard toolbar to enter edit mode.
  2. Select an analysis widget in the given dashboard.
  3. In the Edit Panel below, select the widget by its name under Contained Widget(s).

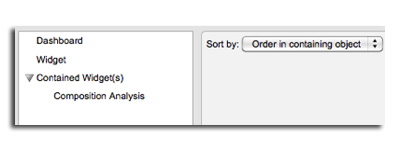

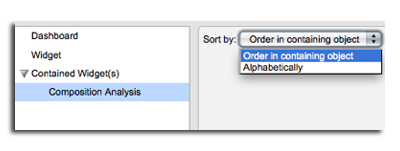

The Sort by drop down appears on the right. The Order in containing object sort is the default for Composition Analysis, Clip Element Analysis, and Collection Analysis. The URL Analysis, Error Analysis, and Clip Analysis widgets support only alphabetic sorting.

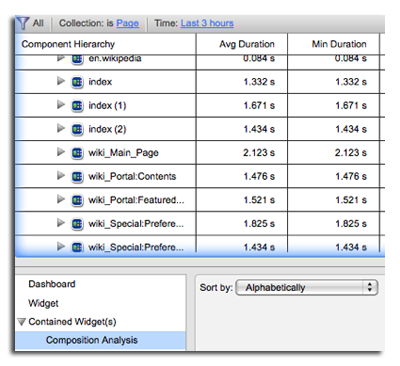

For example, in the screenshot on the right pages are displayed alphabetically in which they occurred within the parent test clip.

Showing Failed Clips and Collections in Charts

CloudTest omits stopped and failed clips from test results as a default. However, stopped or failed clips, as well as stopped or failed collections, can be turned on for the following Basic charts.

    • Clip Analysis
    • Collection Analysis
    • Composition Analysis

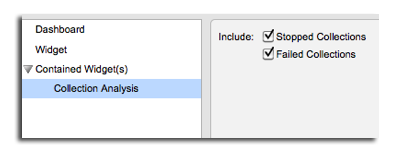

For example, when the Collections Analysis widget is selected in the Contained Widget(s) list, additional checkboxes to include Stopped Collections and Failed Collections appear (unchecked, according to the default). Check either or both of these options to include stopped or failed clips or collections (the given options vary as to whether the chart shows clips or collections).





Sorting in Aggregate Widgets

Aggregate widgets (Clip Analysis, Clip Element Analysis Composition Analysis, Error Analysis, and Collection Analysis) now include the ability to sort by order (within the containing object) as well as alphabetically).
To sort an aggregate widget:

  1. Open the dashboard that contains the widget, or, add one of the aggregate widgets to a dashboard.
  2. Select the widget to sort by properties. Note the default sorting order for the given widget.

  1. Click Toggle Dashboard Edit Mode on the dashboard toolbar.
  2. Click the widget name in the list on the left.
  3. Click the Sort-by drop down to make a selection.

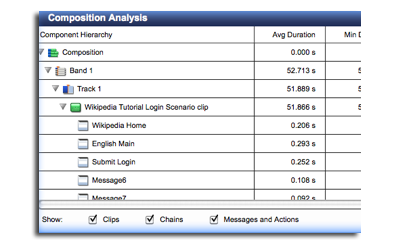

  • Order in containing object (default)

This option sorts an aggregate widget by the CloudTest Object model (e.g. Composition > Band > Track > Clip, etc.)

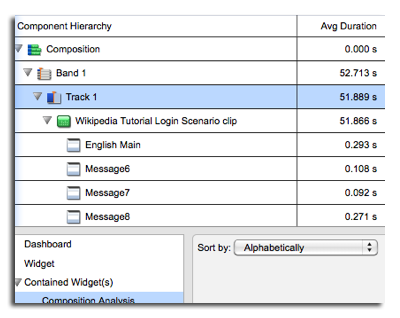

  • Alphabetically

This option sorts an aggregate widget by its initial letter, excluding the top-level composition object.

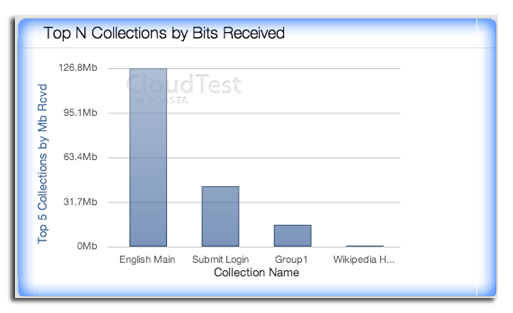

Additional Settings for Top N Widgets

Top N widgets include additional settings by which the Top or Bottom events in the available range of the given result selection can be displayed. Making such a change also changes the widget title.

    1. To apply top or bottom settings, first invoke Toggle Dashboard Edit Mode in a dashboard containing a Top N widget.



The Edit Panel appears below.

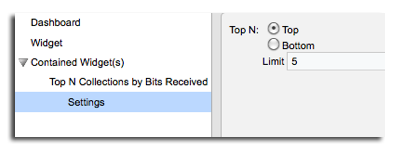

  1. Select the Settings node in the list (under the name of the Top N widget).

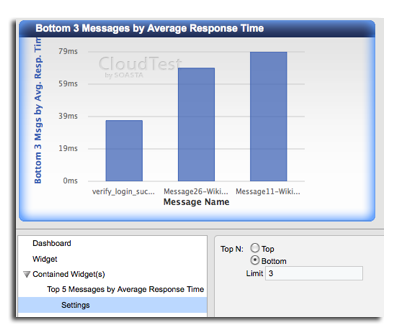

  1. Select either the Top or Bottom radio button and then enter an integer in the Limit field. For example, to display the Top three messages by bytes sent, select Top and then enter 3 in the Limit field.

  1. Click Apply. When you do so, the settings are applied to the widget, thus changing its name to that of the selection.
